Bike Check - Orbea Rallon FTF Edition

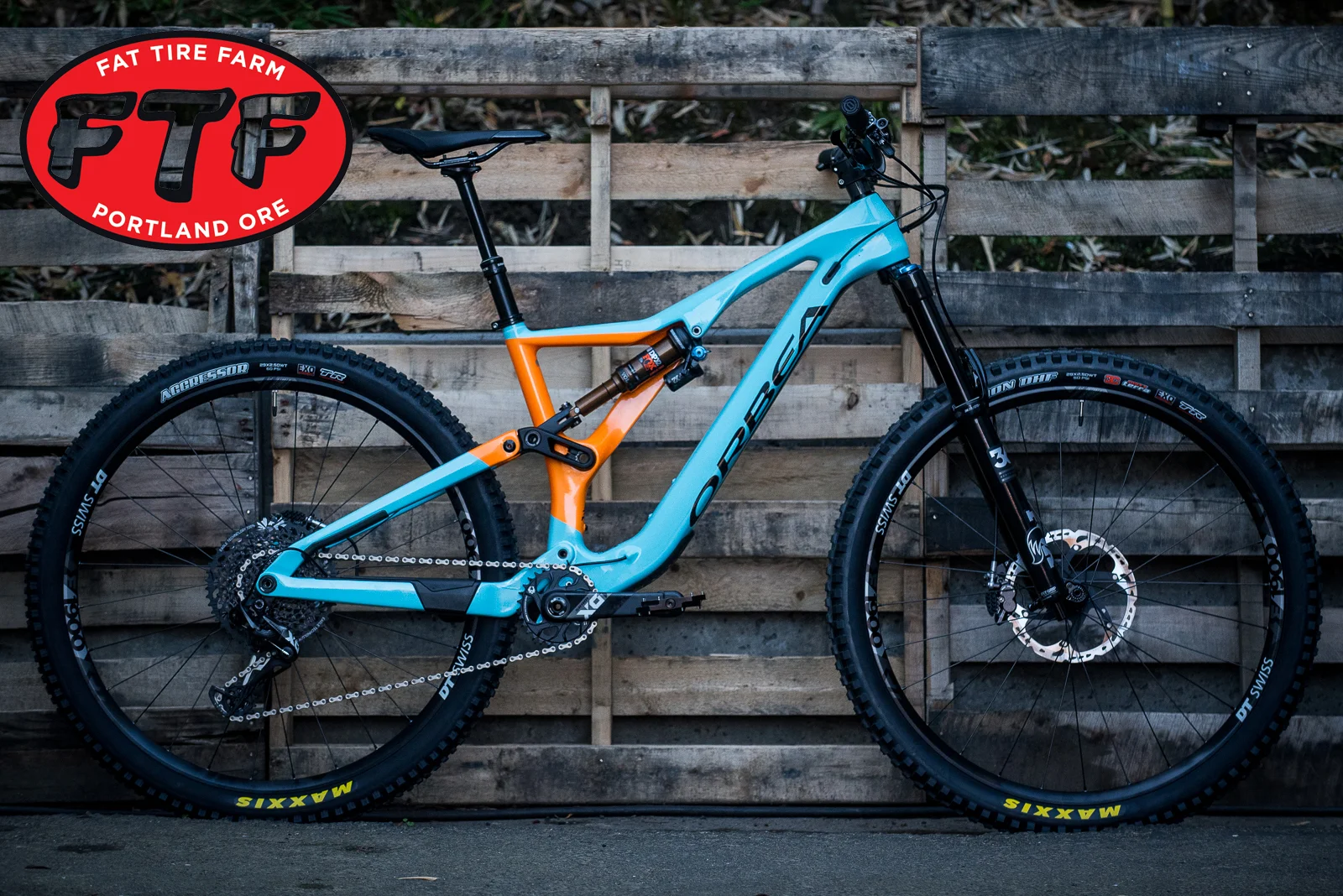

Check out this one-off “Fat Tire Farm” edition Orbea Rallon. The core of the build is Orbea’s M10 spec with a FOX DPX2 Factory rear shock and a FOX Float 36 Performance fork, but we decided to throw on SRAM’s X01 Eagle drivetrain, complete with carbon cranks, carbon ENVE bars, Deity Waypoint grips, and a Burgtec stem and pedals. Check out the full build below.

Highlights

  • OMR Carbon front and rear triangle

  • Asymmetrical monocoque frame construction

  • 29-inch wheels

  • 150mm rear travel with 160mm front travel

  • Adjustable head angle and bottom bracket height

  • Accepts both air and coil Metric shocks

  • Keyed-in oversized yoke

  • Internal cable routing

  • Sealed Enduro Max bearings

  • Four-bar suspension with concentric rear axle pivot

  • Integrated downtube, seatstay, and chainstay protection

  • 1x drivetrain specific

  • Threaded bottom bracket

  • 180mm post mount rear brake

  • ISCG 05 tabs

Build

  • Frame: Orbea Rallon

  • Travel: 150mm Rear Travel // 160mm Front

  • Material: Carbon Fiber

  • Fork: FOX Float 36 Performance

  • Shock: FOX DPX2 Factory

  • Wheelset: DT Swiss E-1900 Spline 30c

  • Derailleur: SRAM X01 Eagle

  • Front Tire: Maxxis Minion DHF 29x2.50 WT

  • Rear Tire: Maxxis Aggressor 29x2.50 WT

  • Grips: Deity Waypoint

  • Bars: ENVE M9 Carbon

  • Stem: Burgtec Enduro MK2

  • Cranks: SRAM X01 Carbon

  • Saddle: Selle Italia SLR

  • Brakes: Shimano XT

  • Cassette: SRAM Eagle 10-50T

  • Chain: SRAM Eagle

  • Shifter: SRAM GX Eagle

  • Post: Race Face Aeffect

  • Pedals: Burgtec Penthouse Flat MK4

Geometry


To check out Vital MTB’s take on the Rallon hit this link right here. If you’re interested in building up a custom bike swing by The Farm and we’ll be happy to work with you to get you rolling.
