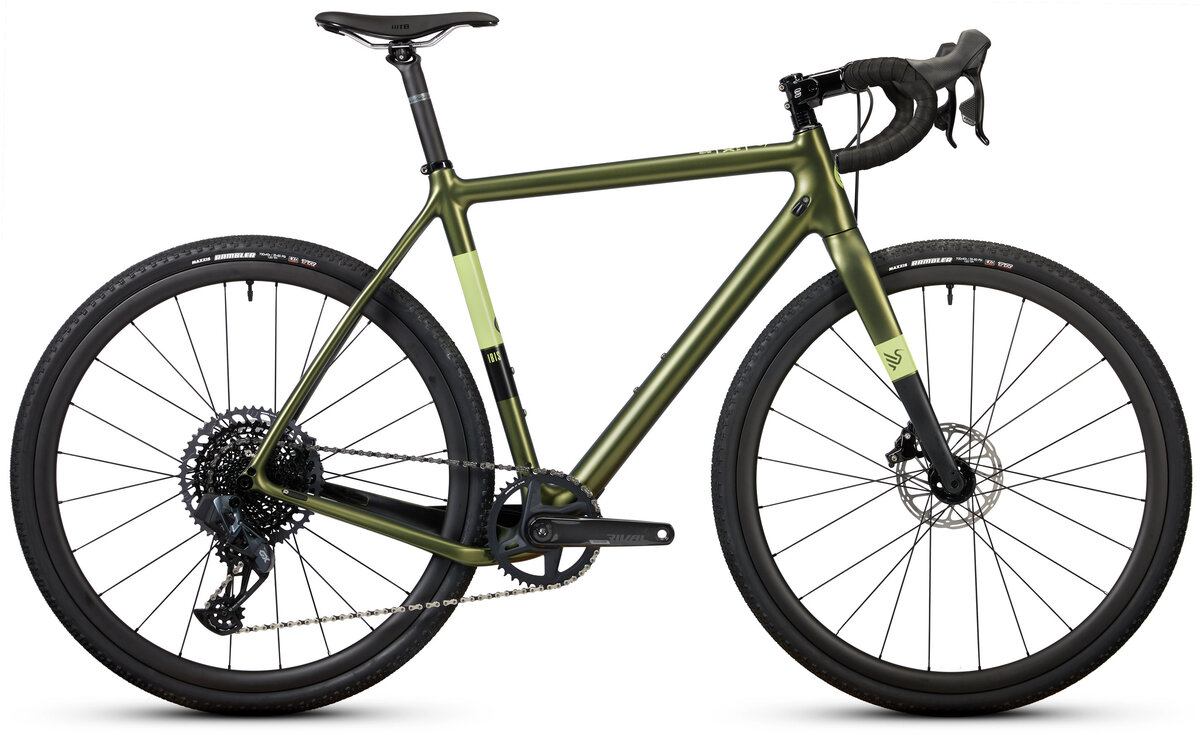

Ibis Hakka MX Apex Crest XD Wheelset

Ibis Hakka MX Apex Crest XD Wheelset
  • Color: Clean Slate
  • Color: Lemongrass Green
$3,299.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The Hakka MX is our answer to the Swiss Army Knife.

Lightweight
With its ultra versatile geometry and 1000g frame weight, the Hakka MX is just as happy crushing the local club ride as it is jumping barriers or camping out.

Versatile
It's good to have options. With the Hakka MX, you can run road, cross and gravel friendly 700c wheels, or if you are into burlier backcountry exploration, go with 27.5/650b. With the Hakka MX, you don’t have to pick one tire option or the other. Our subtle sculpted chainstays give the frame clearance for up to 700 x 40c or 27.5 x 2.1” tires.

Cable Routing Options Galore
No matter what drivetrain you prefer, 1x, electronic, or 2x, the Hakka MX has you covered. The frame has internal cable routing provisions for every drivetrain on the market, plus a dropper post. We’ve even included a slick Di2 battery mount inside the downtube.

Bottom Bracket
We’ve tried every bottom bracket under the sun and in the end, we haven’t found anything that’s more reliable than a threaded BB. Our Hakka features the T47 BB standard, which uses 30mm bearings enabling you to use the recent crop of lightweight cranksets. This is the best way to combine a threaded BB with 30mm spindle compatibility. It’s lightweight, quiet and durable, because no one likes a creaky bike.

Disc Brakes & Fender Mounts
The Hakka MX has flat-mount disc mounts and fits a 160mm rotor. The ENVE G Series Gravel fork has fender eyelets, internal cable routing and monster clearance for 700c x 50c or 27.5" x 2.25" tires. There’s also a removable rear fender mount on the seat stays.

Two
We offer two groups (Rival1 and Shimano GRX), two wheel sizes (700 or 27.5"), two color options (Salt Water Taffy or Sacre Bleu) and two rim material options (carbon or aluminum).

Five
The Hakka comes in five frame sizes: 49, 53, 55, 58, 61

Lifetime Warranty
If its our fault, we'll fix it. Simple as that.

*Specs may differ from images shown

Sizes:
Frame Size4953555861
Seat Tube Length (mm) 455 525 550 575 605
Top Tube Length (mm) 517 539 554 568 589
Head Tube Length (mm) 110 135 155 173 195
Chainstay Length (mm) 430 430 430 430 430
Seat Tube Angle 74.5° 74° 73.5° 73.5° 73.5°
Head Tube Angle 70.5° 72° 72° 72° 72°
Wheelbase (mm) 1008 1011 1021 1037 1057
Stack (mm) 532 561 580 598 616
Reach (mm) 370 377 382 392 406
Bottom Bracket Drop (mm) 70 70 70 70 70
Standover Height (mm) 729 785 802 827 853
Sizes:
Frame SizeRider Height (in)Rider Height (cm)
49 4'11"–5'4" 150–163CM
53 5'3"–5'8" 160–173CM
55 5'7"–6'0" 170–183CM
58 5'11"–6'2" 180–188CM
61 6'1"–6'6" 185–198CM

Specs

Frame Hakka
Fork Enve Cross Disk Fork, 700c, 100x12
Rims Stan's Crest (700C)
Hubs Ibis Hubs
Tires Maxxis Rambler 700c x 40mm, EXO
Bottom Bracket SRAM BB T47 Road Wide
Crankset SRAM Apex, 42t Alloy Ring
Chainrings 42t Chain Ring
Shifters SRAM Apex
Rear Derailleur SRAM Apex
Cassette/Freewheel SRAM XG 1275, 10-52T
Chain SRAM NX Eagle
Brakes SRAM Apex
Rotors SRAM centerline 160mm
Brake Levers SRAM Apex
Handlebars Ibis Alloy Flared Bar
Tape/Grips Black EVA bar tape
Stem Ibis 31.8mm Road 70mm
Headset Cane Creek 40: IS41/IS52/40
Seatpost Ibis Alloy
Saddle WTB Silverado, 142mm
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Clean Slate / 49cm / 700c 840345311917 HKC1STSAPAL7025
Clean Slate / 53cm / 700c 840345311993 HKC2STSAPAL7025
Clean Slate / 55cm / 700c 840345312075 HKC3STSAPAL7025
Clean Slate / 58cm / 700c 840345312150 HKC4STSAPAL7025 210000105742
Clean Slate / 61cm / 700c 840345312235 HKC5STSAPAL7025
Lemongrass Green / 49cm / 700c 840345311870 HKC1GNSAPAL7025 210000105712
Lemongrass Green / 53cm / 700c 840345311955 HKC2GNSAPAL7025 210000105714
Lemongrass Green / 55cm / 700c 840345312037 HKC3GNSAPAL7025 210000105716
Lemongrass Green / 58cm / 700c 840345312112 HKC4GNSAPAL7025
Lemongrass Green / 61cm / 700c 840345312198 HKC5GNSAPAL7025 210000105718
