Ibis Hakka MX Rival
This item is currently not available.
Details
Call for build options and availability
It’s good to have options. With the Hakka MX, you can run road, cross and gravel friendly 700c wheels, or if you are into burlier backcountry exploration, go with 27.5/650b. With the Hakka MX, you don’t have to pick one tire option or the other. Our subtle sculpted chainstays give the frame clearance for up to 700 x 40c or 27.5 x 2.1” tires.

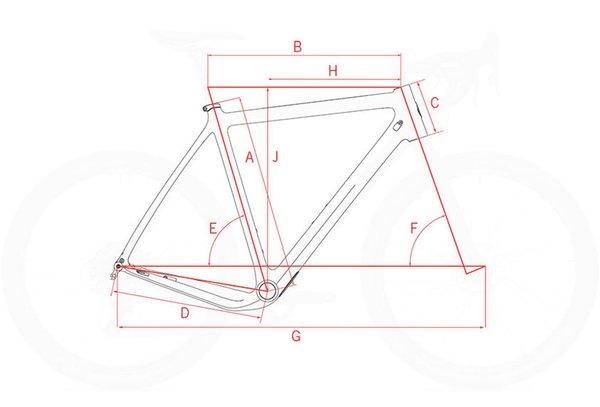

| NOMINAL SIZE C-T | 49 | 53 | 55 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat Tube Length | A | 455 | 525 | 550 | 575 | 605 |
| Top Tube Length | B | 520 | 540 | 550 | 570 | 590 |
| Head Tube Length | C | 110 | 135 | 155 | 175 | 195 |
| Chainstay Length | D | 430 | 430 | 430 | 430 | 430 |
| Seat Tube Angle | E | 74.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Head Tube Angle | F | 70.5° | 71.5° | 71.5° | 71.5° | 72° |
| Wheelbase | G | 1007 | 1011 | 1021 | 1037 | 1057 |
| Stack | 532 | 560 | 580 | 599 | 616 | |
| Reach | 370 | 373 | 382 | 391 | 406 | |
| Bottom Bracket Drop | 70 | 70 | 70 | 70 | 70 | |
| Standover Height | 729 | 785 | 802 | 827 | 853 |
Specs
| Frame | Carbon fiber monocoque |
|---|---|
| Fork | ENVE G Series Carbon Fiber Gravel Fork: Flat Mount, Fender Eyelets, Internal Routing, Through Axle |
| Headset | Cane Creek 40 Headset, IS41/28.6 IS52/40 |
| Wheelset | Ibis 733 Aluminum (27.5"/650b) or Stan’s Grail (700c) |
| Hubs | Ibis Hubs |
| Tires | Schwalbe Thunder Burt 27.5" x 2.1" or Maxxis Rambler 700c x 40mm, EXO |
| Crankset | Praxis Zayante Alloy, 30mm spindle, 40t Alloy Ring (170mm on 49cm, 172.5mm on 53, 55 and 58cm, 175mm on 61cm) |
| Chain | SRAM PC 1110 114 link with PowerLock |
| Derailleur | SRAM Rival |
| Rear Cog(s) | SRAM PG 1130 11-42 |
| Shifters | SRAM Rival |
| Handlebars | Ibis Flat Top 7075-T6 (42cm on 49cm and 53cm frames, 44cm on 55cm, 58cm and 61cm frames) |
| Tape/Grips | Black EVA Bar Tape |
| Stem | Ibis 31.8mm (70, 80, 90, 100mm) |
| Brakes | SRAM Rival |
| Saddle | WTB Silverado Pro 142mm width |
| Seat Post | Ibis 31.6 Aluminum, 350mm |
* Subject to change without notice.
Videos
Gravelduro
Part Numbers
| Option | MPN |
|---|---|
| Bone White/Teal / 49 / Ibis 733 Aluminum (27.5"/650b) | |
| Bone White/Teal / 49 / 700c Stan's Crest Ibis Hubs | |
| Bone White/Teal / 53 / Ibis 733 Aluminum (27.5"/650b) | |
| Bone White/Teal / 53 / 700c Stan's Crest Ibis Hubs | IBIS-HAKKA-BONE-53-RIVAL |
| Bone White/Teal / 55 / Ibis 733 Aluminum (27.5"/650b) | |
| Bone White/Teal / 55 / 700c Stan's Crest Ibis Hubs | |
| Bone White/Teal / 58 / Ibis 733 Aluminum (27.5"/650b) | |
| Bone White/Teal / 58 / 700c Stan's Crest Ibis Hubs | IBIS-HAKKAGRAIL-58-RIVAL |
| Bone White/Teal / 61 / Ibis 733 Aluminum (27.5"/650b) | |
| Fireball / 49 / Ibis 733 Aluminum (27.5"/650b) | IBIS-HAKKA-RED-49-RIVAL |
| Fireball / 49 / 700c Stan's Crest Ibis Hubs | |
| Fireball / 53 / Ibis 733 Aluminum (27.5"/650b) | |
| Fireball / 53 / 700c Stan's Crest Ibis Hubs | |
| Fireball / 55 / Ibis 733 Aluminum (27.5"/650b) | |
| Fireball / 55 / 700c Stan's Crest Ibis Hubs | |
| Fireball / 58 / Ibis 733 Aluminum (27.5"/650b) | |
| Fireball / 61 / Ibis 733 Aluminum (27.5"/650b) | |
| Fireball / 61 / 700c Stan's Crest Ibis Hubs | |
| Coal / 49 / Ibis 733 Aluminum (27.5"/650b) | |
| Coal / 49 / 700c Stan's Crest Ibis Hubs | |
| Coal / 53 / Ibis 733 Aluminum (27.5"/650b) | |
| Coal / 53 / 700c Stan's Crest Ibis Hubs | IBIS-HAKKA-BLK-53-RIVAL |
| Coal / 55 / Ibis 733 Aluminum (27.5"/650b) | |
| Coal / 55 / 700c Stan's Crest Ibis Hubs | IBIS-HAKKA-BLK-55-RIVAL |
| Coal / 61 / Ibis 733 Aluminum (27.5"/650b) | |
| Coal / 61 / 700c Stan's Crest Ibis Hubs |
