Details

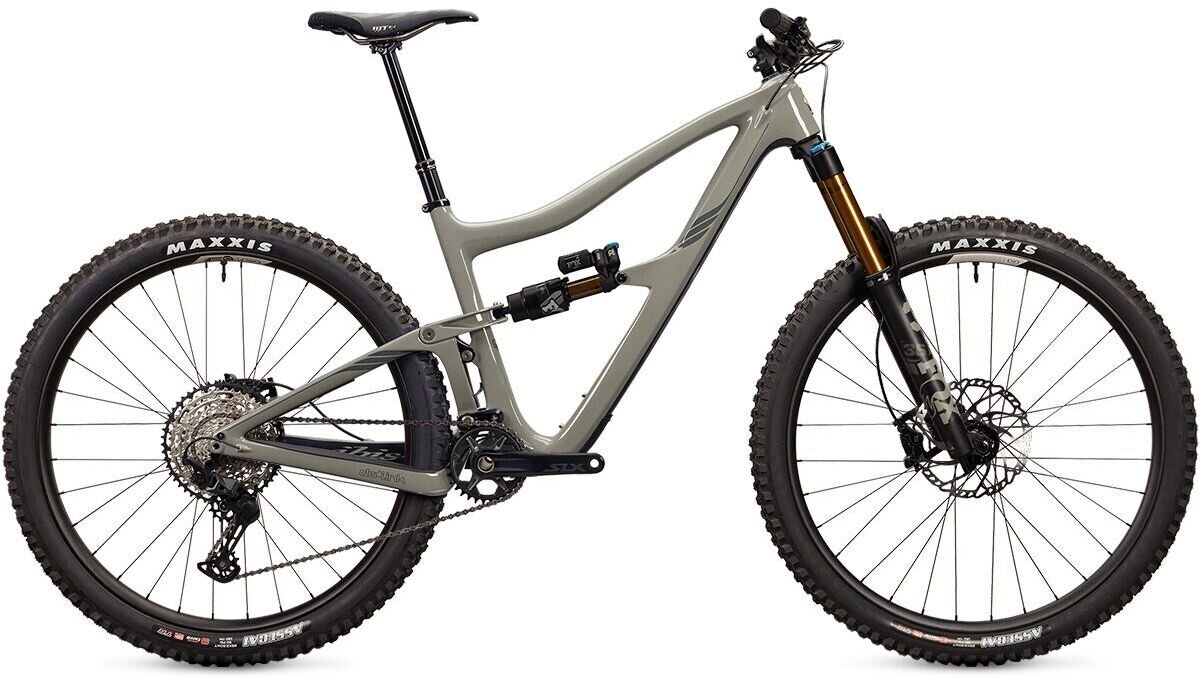

What if we took everybody’s favorite bike and made it a little slacker and little longer? Hell, what if we made it more progressive and coil compatible? And that’s exactly what we did for the Ripmo V2. Active ingredients include: 29” wheels, berm-defying cornering tendencies, and a love for long rides.
The Ripmo and Ripmo AF share the same steep, 76-degree seat tube angle and a rangy but not stratospheric reach, which places riders centrally over the pedals. It makes for an efficient position that can go the long haul. The slack 64.9 headtube angle and 44mm reduced-off set fork doesn’t wander while climbing, and doesn’t hold you back descending. It works?—?all day up, all day down, all day in between.
160MM FORK (567MM AXLE TO CROWN)
NOMINAL SIZE | SMALL | MEDIUM | LARGE | X-LARGE | |
---|---|---|---|---|---|
Seat Tube Length | A | 368 | 406 | 432 | 483 |
Top Tube Length | B | 573 | 603 | 632 | 655 |
Head Tube Length (4mm stack of lower cup not included) | C | 90 | 100 | 110 | 120 |
Chainstay Length | D | 435 | 435 | 435 | 435 |
Seat Tube Angle | E | 77° | 77° | 76° | 76° |
Head Tube Angle | F | 64.9° | 64.9° | 64.9° | 64.9° |
Wheelbase | G | 1187 | 1219 | 1238 | 1267 |
BB Height (with 2.5 Maxxis Minions) | 341 | 341 | 341 | 341 | |
BB Drop | 30 | 30 | 30 | 30 | |
Stack | 609 | 619 | 628 | 640 | |
Reach | 433 | 460 | 475 | 500 | |
Standover | 703 | 733 | 740 | 752 | |
Trail | 125 | 125 | 125 | 125 | |
Fork Offset | 44 | 44 | 44 | 44 | |
Saddle height for seat tube angle | 650 | 720 | 750 | 807 |
SIZING GUIDE (RIDER HEIGHT)
Specs
Fork | Fox Float 36 Factory Series 160mm, 29”, 110x15. Fox Factory 38 shipping late Fall. |
---|---|
Rear Shock | Fox Float Factory Series, X2 with EVOL, 210 x 55 |
Rims/Wheels | Ibis S35 Aluminum / 29" / Ibis Hubs |
Tires | Maxxis Assegai 29” x 2.5” WT, EXO+ casing, 120tpi |
Crankset | Shimano SLX M7100 24mm spindle, 30t Alloy Ring S/M: 170mm, L/XL: 175mm |
Rear Derailleur | Shimano SLX M7100 Shadow Plus |
Rear Cogs | Shimano SLX, 10-51T |
Shifters | Shimano SLX M7100 |
Handlebars | Ibis 780mm Alloy |
Stem | Ibis 31.8mm S/M: 40mm, L: 50mm, XL: 60mm |
Brakes | Shimano SLX M7120, 4 piston |
Seat Post | Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post. |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Bug Zapper Blue / Medium / Carbon | RMC2BUSSXLG35 | 210000099624 |
