Details

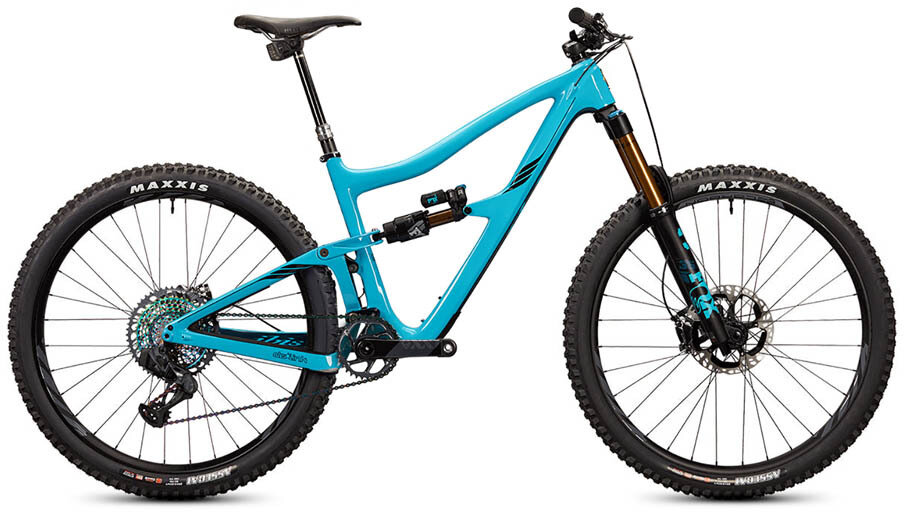

What if we took everybody’s favorite bike and made it a little slacker and little longer? Hell, what if we made it more progressive and coil compatible? And that’s exactly what we did for the Ripmo V2. Active ingredients include: 29” wheels, berm-defying cornering tendencies, and a love for long rides.
The Ripmo and Ripmo AF share the same steep, 76-degree seat tube angle and a rangy but not stratospheric reach, which places riders centrally over the pedals. It makes for an efficient position that can go the long haul. The slack 64.9 headtube angle and 44mm reduced-off set fork doesn’t wander while climbing, and doesn’t hold you back descending. It works?—?all day up, all day down, all day in between.

160MM FORK (567MM AXLE TO CROWN)
NOMINAL SIZE | SMALL | MEDIUM | LARGE | X-LARGE | |
---|---|---|---|---|---|
Seat Tube Length | A | 368 | 406 | 432 | 483 |
Top Tube Length | B | 573 | 603 | 632 | 655 |
Head Tube Length (4mm stack of lower cup not included) | C | 90 | 100 | 110 | 120 |
Chainstay Length | D | 435 | 435 | 435 | 435 |
Seat Tube Angle | E | 77° | 77° | 76° | 76° |
Head Tube Angle | F | 64.9° | 64.9° | 64.9° | 64.9° |
Wheelbase | G | 1187 | 1219 | 1238 | 1267 |
BB Height (with 2.5 Maxxis Minions) | 341 | 341 | 341 | 341 | |
BB Drop | 30 | 30 | 30 | 30 | |
Stack | 609 | 619 | 628 | 640 | |
Reach | 433 | 460 | 475 | 500 | |
Standover | 703 | 733 | 740 | 752 | |
Trail | 125 | 125 | 125 | 125 | |
Fork Offset | 44 | 44 | 44 | 44 | |
Saddle height for seat tube angle | 650 | 720 | 750 | 807 |
SIZING GUIDE (RIDER HEIGHT)
Specs
Fork | Fox Float 38 Factory Series 160mm, 29”, 110x15. |
---|---|
Headset | Cane Creek 40 ZS44/ZS56 |
Rear Shock | Fox Float Factory Series, X2 with EVOL, 210 x 55 |
Rims/Wheels | Ibis S35 Aluminum / 29" / Ibis Hubs |
Hubs | Ibis S35 Aluminum / 29" / Ibis Hubs |
Tires | Maxxis Assegai 29” x 2.5” WT, EXO+ casing, 120tpi |
Crankset | SRAM X01 Eagle DUB spindle, 30t Alloy Ring, 170mm |
Bottom Bracket | SRAM DUB BSA |
Chain | SRAM X01 Eagle |
Rear Derailleur | SRAM X01 Eagle |
Rear Cogs | SRAM XG 1295 Eagle 10-52 |
Shifters | SRAM X01 Eagle |
Handlebars | Ibis 800mm Hi Fi Bar |
Stem | Industry Nine A318 S/M: 40mm, L/XL: 50mm |
Brakes | SRAM Code RSC, 4 piston SRAM Centerline 6 bolt 203mm/180mm |
Saddle | WTB Silverado 142 |
Seat Post | Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post. |
* Subject to change without notice.
