Details

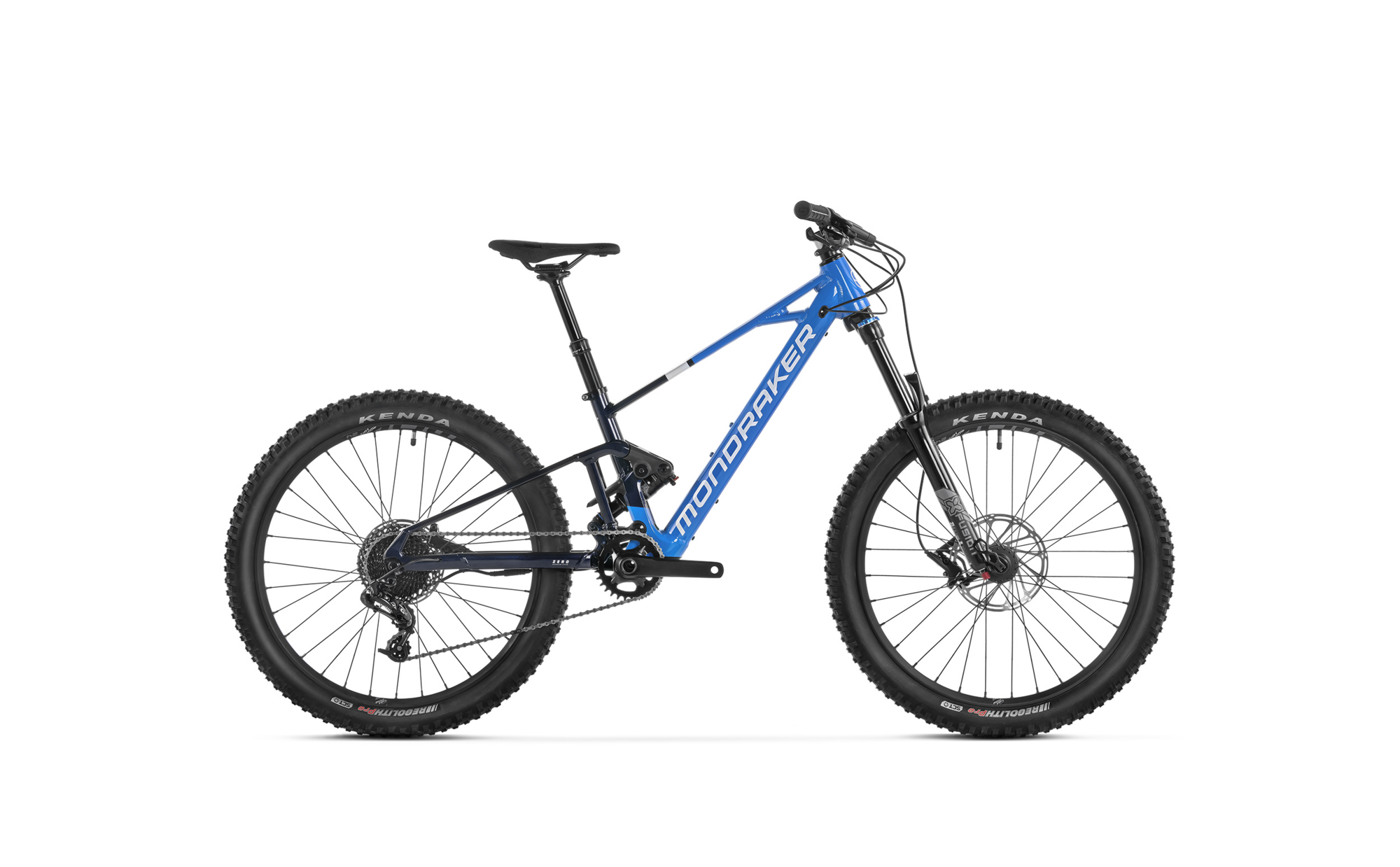

If you want your little-ones to get better at mountain biking you’ll need a bike that helps them do just that. That’s why we’ve completely redesigned our F-Play range, making them unarguably the best two-wheeled investment ever when it comes to smiles per mile. We’ve gone all-in, leveraging adult-bike tech to design the best kids bikes out there.
Frame size | One Size |
---|---|
Seattube length | 320 mm |
Toptube length | 525 mm |
Bottom bracket drop | -10 mm |
Bottom bracket height | 295 mm |
Chainstay length | 420 mm |
Seat tube angle | 71º |
Effective seattube angle | 76º |
Headtube angle | 67º |
Fork Offset | 39 mm |
Wheelbase | 1050 mm |
Headtube length | 90 mm |
Reach | 375 mm |
Stack | 513 mm |
Specs
Motor | Motor: Mahle-Ebikemotion X-35 |
---|---|
Pedals | SDG Slater JR |
Battery | Battery: Mahle-Ebikemotion Internal 250Wh |
Controller/Display | Display: Mahle-Ebikemotion |
Fork | Fork: X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
Hubs | Front Hub: Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts ; Rear Hub: Mahle-Ebikemotion X-35, HG freehub |
Rims | Rims: MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
Stem | Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
Chain | Chain: Sram PC1031 10s, Powerlock |
Frame | Frame: F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
Tires | Front Tire: Kenda Regolith 24x2.4 120TPI, Folding TLR ; Rear Tire: Kenda Regolith 24x2.4 120TPI, Folding TLR |
Brakes | Front Brake: Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad ; Rear Brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Saddle | Saddle: SDG Fly JR |
Spokes | Spokes: CN round stainless steel |
Headset | Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
Crankset | Crankset: Samox DM 30T steel, 152mm |
Seatpost | Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 100mm |
Shifters | Shift Levers: Sram trigger GX 10s, X-actuation 1:1 |
Chainrings | Rings: 30T, steel |
Handlebars | Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Tape/Grips | Grips: Onoff Twin, 1lock-on |
Brake Levers | Brake Lever: Sram Level, tooled reach adjust, lever pivot bushings |
Bottom Bracket | Bottom Bracket: BSA, 73mm |
Rear Derailleur | Rear Derrailleur: Sram GX, 10s, short cage, X-actuation 1:1 |
Cassette/Freewheel | Cassette: Sram PG 1020 11-36T, 10s |
Rear Shock | Rear Shock: X-Fusion 02PRO R, 210x47.5mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Carrera Blue / 24-inch | 8435392884341 | 010.24US240 | 210000106170 |
