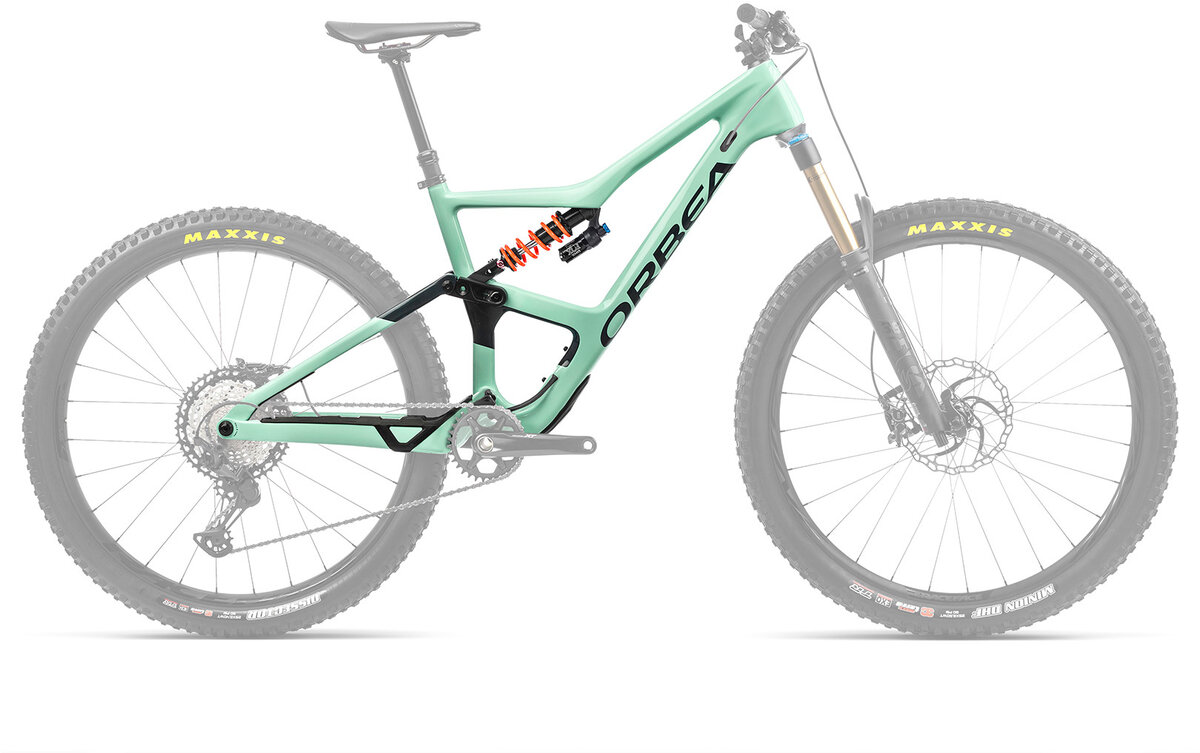

Orbea Occam OMR LT Frame + Float X F K

Orbea Occam OMR LT Frame + Float X F K
  • Color: Ice Green/Jade Green
  • Color: Infinity Green
  • Color: Metallic Mulberry/Black
$4,199.00
Please select options
Sorry, this item is currently not available. Call for Availability.

Details

ARE YOU THIS RIDER?

Do your friends ask if you intend to ride the chairlift when you invite them out for a 'few' park laps? Do your top routes frequently involve pushing up and down trails that aren't on any map? Do your favorite rides begin or end with headlamps, an ice chest, and great friends? Does your bike have to do everything well to get you there and back again? If you think you might be this rider, then Occam should be your bike.

- Intended Use: Trail To Light Enduro

LINKAGE UPDATE
Occam uses a new two-part linkage design. Fewer pieces mean fewer interfaces, greater rigidity, and a lower chance of something working loose. Additionally, we have created a space in the axel and filled it with a handy 4 key multi-tool which is held securely in place with magnets. Always have the most-used tools close at hand for quick tweaks.

INTERNAL CABLE ROUTING
Occam has our latest, fully internal cable routing, using silicon plugs at the frame entry and exit points and clever conduits linking the front and rear triangle so your cables are fully protected.

ASYMMETRICAL DESIGN
Instead of using a less-efficient "shock tunnel", the Occam offsets the shock to the left side of the frame, allowing the right-side support to be more central and more efficiently deal with the suspension forces acting on the front triangle. This solution enables us to tune the stiffness of this high-stress area without adding unnecessary weight.

THE ASYMMETRIC/OFFSET DESIGN OFFERS UNIQUE ADVANTAGES BEYOND STIFFNESS AND LOW WEIGHT.
Avoiding an interrupted seat tube gives more space for dropper posts plus improves access to the shock controls. Additionally, the tidy design leaves room for a water bottle with easy left-side access.

Specs

Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Rear Shock Fox DHX Factory 2-Position custom tune 210x55mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated

* Subject to change without notice.

Part Numbers

Option UPC MPN
Ice Green/Jade Green / Small 08434446049873 M91015LT
Ice Green/Jade Green / Medium 08434446049910 M91017LT
Ice Green/Jade Green / Large 08434446049958 M91018LT
Ice Green/Jade Green / X-Large 08434446049996 M91020LT
Infinity Green / Small 08434446049866 M91015LS
Infinity Green / Medium 08434446049903 M91017LS
Infinity Green / Large 08434446049941 M91018LS
Infinity Green / X-Large 08434446049989 M91020LS
Metallic Mulberry/Black / Small 08434446049880 M91015LU
Metallic Mulberry/Black / Medium 08434446049927 M91017LU
Metallic Mulberry/Black / Large 08434446049965 M91018LU
Metallic Mulberry/Black / X-Large 08434446050008 M91020LU
