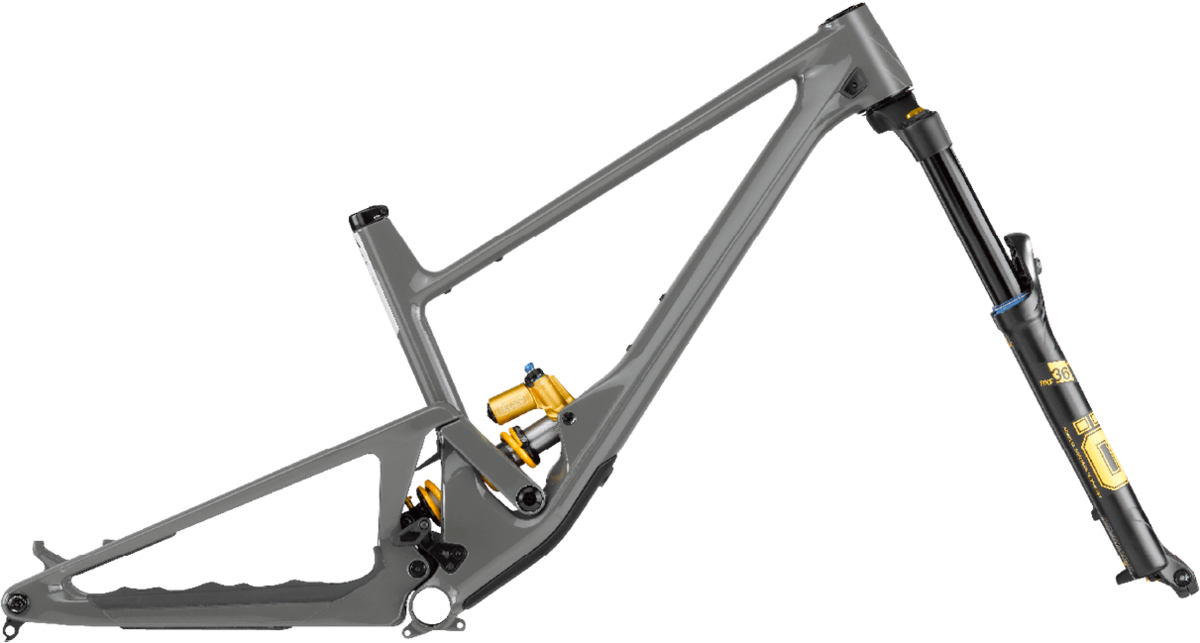

SCOR 4060 LT LTD Ohlins Frameset

SCOR 4060 LT LTD Ohlins Frameset
  • Size: X-Large
  • Size: X-Large
  • Size: X-Large
Please select options


Combining some of the world’s most sought-after suspension products with a super limited run paint scheme, we’ve created our most exclusive, high performance frameset so far.
Pairing our 4060 LT chassis with Öhlins’ TTX22M shock and RXF36M.2 Coil fork, we are offering the perfect platform for riders who like to play the mountains with supreme levels of grip. 4060 LTD Öhlins - Swiss Carbon, Swedish Gold.


Frame SCOR 4060 full carbon frame Lower-Link Driven Instant Center Linkage 140 / 160mm rear wheel travel Fully guided internal cable routing Stash box Boost 148 SRAM Universal Derailleur Hanger Lower ISCG 05 mount / Chainguide
Fork Öhlins RXF36 m.2 29" Coil 170mm travel Independent coil spring TTX18 damper Low & high speed compression adjust Rebound adjust 44mm rake
Rear Shock Öhlins TTX22M Lightweight coil spring TTX damper High & low speed compression & rebound adjust Pedaling platform Spring rate lb/in: 320 (435), 365 (459), 411 (485), 457 (515)

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
X-Large SCOR-4060LTD-XL 210000098024
