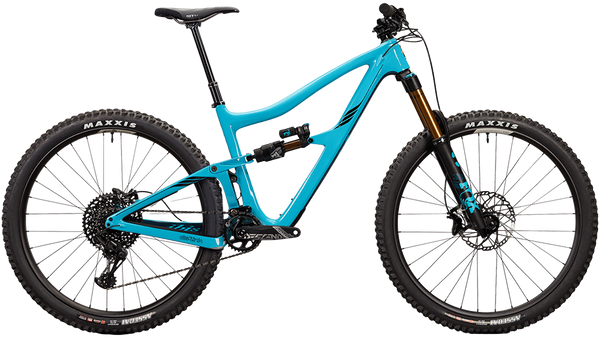

Ibis Ripmo v2 NGX

Ibis Ripmo v2 NGX
This item is currently not available.

Details

What if we took everybody’s favorite bike and made it a little slacker and little longer? Hell, what if we made it more progressive and coil compatible? And that’s exactly what we did for the Ripmo V2. Active ingredients include: 29” wheels, berm-defying cornering tendencies, and a love for long rides.

The Rip­mo and Rip­mo AF share the same steep, 76-degree seat tube angle and a rangy but not stratos­pher­ic reach, which places rid­ers cen­tral­ly over the ped­als. It makes for an effi­cient posi­tion that can go the long haul. The slack 64.9 head­tube angle and 44mm reduced-off set fork doesn’t wan­der while climb­ing, and doesn’t hold you back descend­ing. It works?—?all day up, all day down, all day in between.

Our cus­tom tuned front and rear sus­pen­sion fea­ture extra light high speed com­pres­sion and rebound damp­ing to deliv­er unpar­al­leled trac­tion. This allows the wheels to flut­ter through ter­rain like a tro­phy truck storm­ing through a set of whoops.

160MM FORK (567MM AXLE TO CROWN)

NOMINAL SIZE SMALLMEDIUMLARGEX-LARGE
Seat Tube Length A 368 406 432 483
Top Tube Length B 573 603 632 655
Head Tube Length (4mm stack of lower cup not included) C 90 100 110 120
Chainstay Length D 435 435 435 435
Seat Tube Angle E 77° 77° 76° 76°
Head Tube Angle F 64.9° 64.9° 64.9° 64.9°
Wheelbase G 1187 1219 1238 1267
BB Height (with 2.5 Maxxis Minions) 341 341 341 341
BB Drop 30 30 30 30
Stack 609 619 628 640
Reach 433 460 475 500
Standover 703 733 740 752
Trail 125 125 125 125
Fork Offset 44 44 44 44
Saddle height for seat tube angle 650 720 750 807

SIZING GUIDE (RIDER HEIGHT)

S
152–165CM
M
163–175CM
L
173–185CM
XL
183–198CM
