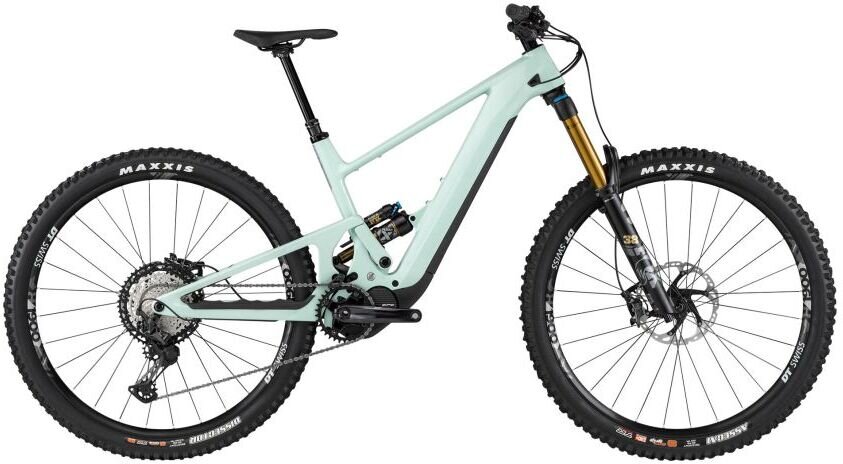

SCOR 4060 Z ST XT
$6,500.00
$9,699.00
Details
140MM REAR / 150MM FRONT TRAVEL | 29” WHEELS
FOX 38 FACTORY / FLOAT X FACTORY SUSPENSION
SHIMANO XT DRIVETRAIN | SHIMANO XT BRAKES
----
SCOR calls it a trail bike that mixes zip with zap. The 4060 Z ST XT packs a powerful punch on the ups and the downs it’s built for a good time and a long time. A full-carbon frame, top-tier suspension and benchmark components offer a no compromise build that's ready to rip.
Specs
| Frame | SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center linkage | 140 / 160mm rear travel | Fully guided internal cable routing | Boost 148 | SRAM UDH |
|---|---|
| Fork | Fox 38 Factory GRIP2 | 150mm travel | 44mm rake |
| Headset | SCOR integrated headset |
| Rear Shock | Fox Float X Factory | 140mm | 210 x 47.5mm |
| Rims/Wheels | DT Swiss H 1900 Spline | 30mm internal width | Tubeless ready |
| Hubs | DT Swiss 370 | Ratchet LN freehub | Straightpull spoke interface | Boost spacing |
| Tires | Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R) |
| Crankset | Shimano Deore XT (FC-M8150) | 165mm length | 34T chainring (SM-CRE80-12-B) |
| Chain | Shimano Deore XT (CN-M8100) |
| Rear Derailleur | SHIMANO Deore XT (RD-M8100) | 12 speed |
| Rear Cogs | Shimano Deore XT (CS-M8100-12) | 10-51T |
| Shifters | SHIMANO Deore XT (SL-M8100-R) |
| Handlebars | SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 7.5° backsweep |
| Tape/Grips | Burgtec Bartender Pro |
| Stem | Burgtec Enduro MK3 | 3D forged and fully CNC machined | 31.6mm bar bore | 35mm length |
| Brakes | Shimano Deore XT | BR-M8120 calipers | BL-M8100 levers | 203mm rotors |
| Saddle | Fizik Terra Alpaca |
| Seat Post | Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm travel | Triggy Alpha lever |
| Accessories & Extras | SHIMANO Steps EP8 (DU-EP800) | Darfon 36V | 720Wh Battery |
| Color(s) | Mint |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Mint / Small | ||
| Mint / Small | ||
| Mint / Medium | 30001630 | 210000104179 |
| Mint / Large | 30003486 | 210000097613 |
| Mint / X-Large |
